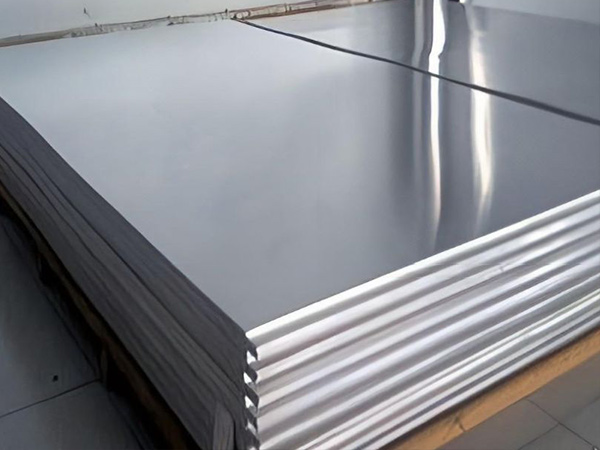

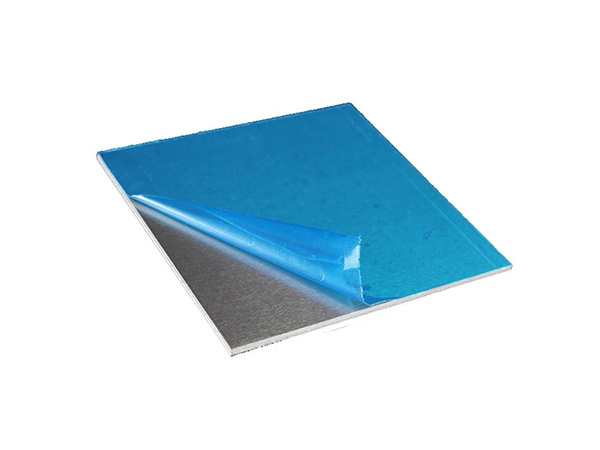

1060 Aluminum Plate, also known as aluminium plates, are the result of basic raw-form aluminium being pressed and rolled into panel form under high pressure.
Standard: ASTM AISI JIS DIN GB
Surface: Coated,Embossed,Brushed,polished,Anodized,etc
Grade:1050/1100/2024/3003/5052/5754/5083/6061/6063/7075
Temper: O,H14,H24,H32,H112,T4,T651 Etc
Thickness:0.3mm-300mm,As Your Required
Width:100mm-2600mm,As Your Required
Length: 1000mm-12000mm,As Your Required
Product Parameters
Width | 20-3000mm or Customized | Thickness | 0.1-120mm or Customized |
Length | 100-12000mm or Customized | Certificate | ISO, SGS, BV |
Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. | ||
Brand | 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075, etc. 8000 Series: 8A06, 8011, 8090, etc. | ||
Surface | Coating, Embossing, Drawing, Polishing, Anodizing, etc. | ||
OEM Service | Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc. | ||
Delivery Time | Received 30%, After deposit 7-15 working day | ||
Application | Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware And Other Fields, etc. | ||
Sample | Free Offers Sample | ||
Packaging | Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement | ||
Chemical Composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | - | 0.04 | 0.03 | 0.05 | - | 99.70 |
1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 - 95.5 |
2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | Margin |
3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | - | 0.15 | 0.1-0.2 | - | - | Margin |
3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | Margin |
3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Margin |
3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Margin |
5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | Margin |
5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | Margin |
5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Margin |
5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | - | 0.20 | - | 0.05 | 0.05 | Margin |
5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Margin |
7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Margin |
Mechanical properties
Tensile Strength (MPa) | Test Stress 0.2% (MPa) | Elongation Rate D10 (%) |
110-136 | ≥75 | 3-5 |
Physical Performance
Density | Melting Point | Modulus of Elasticity | Thermal Conductivity | Thermal Expansion |
2.7 Kg/m³ | 649 °C | 70-80 GPa | 234 W/m.K | 23.6× 10-6/K |
Annealing State
Brand | Annealing State |
1xxx: 1050, 1050A, 1060, 1100 | O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
3xxx: 3003, 3004, 3005, 3105 | |
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 | O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
6xxx: 6061, 6082 | T4, T6, T451, T651 |
2xxx: 2024 | T3, T351, T4 |
7xxx: 7075 | T6, T651 |
Scope of Application
Aluminum Uses And Application Area | |
Food Packaging | Beverage can ends, cans, bottle caps, etc. |
Building | Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
Transportation | Auto parts, passenger car bodies, aviation ships and air cargo containers. |
Electronic Equipment | Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
Consumer Goods | Umbrellas, cooking utensils, sports equipment, etc |
Other | Military, color coated aluminum plate, etc |
| Alloy Series | Chinese standard | American standard | European standard |
1xxx series | 1050 | - | - |
1050A | - | EN AW-1050A | |
1060 | 1060 | - | |
1100 | 1100 | - | |
2xxx series | 2024 | 2024 | EN AW-2024 |
3xxx series | 3003 | 3003 | EN AW-3003 |
3004 | 3004 | EN AW-3004 | |
3005 | 3005 | EN AW-3005 | |
3105 | 3105 | EN AW-3105 | |
5xxx series | 5005 | 5005 | EN AW-5005 |
5052 | 5052 | EN AW-5052 | |
5754 | 5754 | EN AW-5754 | |
5083 | 5083 | EN AW-5083 | |
5086 | 5086 | EN AW-5086 | |
5182 | - | EN AW-5182 | |
5049 | - | EN AW-5049 | |
5251 | - | EN AW-5251 | |
6xxx series | 6061 | 6061 | EN AW-6061 |
6082 | - | EN AW-6082 | |
7xxx series | 7075 | 7075 | EN AW-7075 |
