Hollow Structural Sections (HSS) are often used in industrial building, construction, and infrastructure applications. HSS meets ASTM A500 or ASTM A1085 specifications to be used in the United States. This steel tube is a sustainable and highly efficient option with a higher strength-to-weight ratio than wide-flange sections, giving your construction more support with a smaller, lighter-weight footprint.

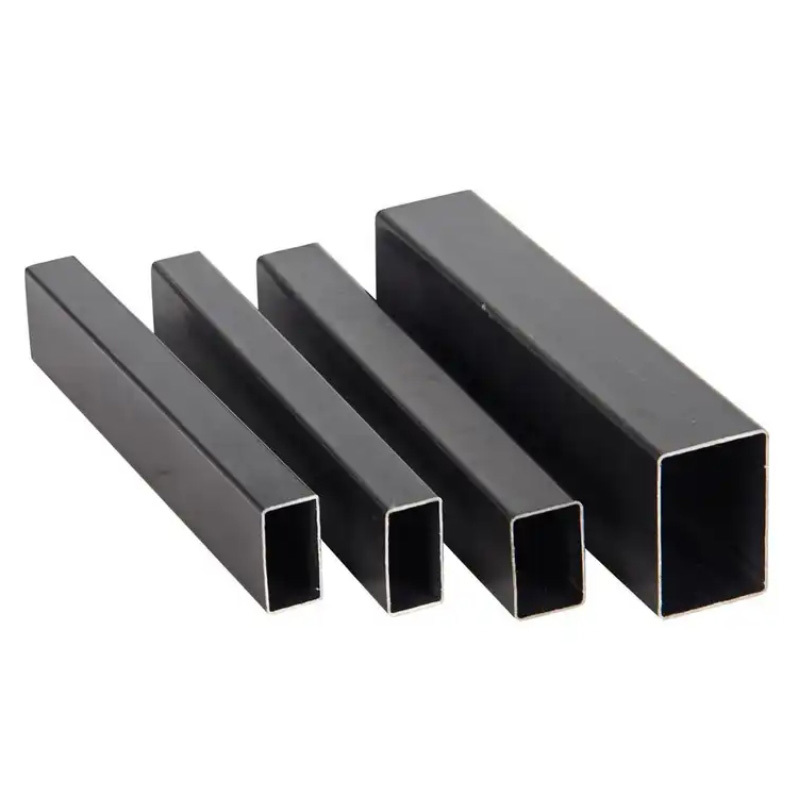

Rectangular HSS is often used within welded steel frames where loading occurs from multiple directions. The flat shape makes rectangular HSS ideal for construction. It is often used to create a pleasing aesthetic effect.
Product Parameters
| External Size in Inches | Wall Thickness in Inches | Weight Per Foot |
|---|---|---|
| 1 1/2 x 3/4 | 0.063 | 0.94 |
| 2 x 1 | 0.063 | 1.27 |
| 0.100 | 1.82 | |
| 0.125 | 2.21 | |
| 0.188 | 3.05 | |
| 2 1/2 x 1 1/2 | 0.125 | 3.06 |
| 3 x 1 | 0.125 | 3.06 |
| 3 x 1 1/2 | 0.125 | 3.48 |
| 0.188 | 4.96 | |
| 3 x 2 | 0.125 | 3.91 |
| 0.188 | 5.61 | |
| 0.250 | 7.11 | |
| 4 x 2 | 0.125 | 4.76 |
| 0.188 | 6.89 | |
| 0.250 | 8.81 | |
| 0.313 | 10.57 | |
| 4 x 3 | 0.125 | 5.61 |
| 0.188 | 8.17 | |
| 0.250 | 10.51 | |
| 0.313 | 12.69 | |
| 0.375 | 14.71 | |
| 5 x 2 | 0.125 | 5.61 |
| 0.188 | 8.17 | |
| 0.250 | 10.51 | |
| 0.313 | 12.69 | |
| 0.375 | 14.71 | |
| 5 x 2 1/2 | 0.188 | 8.80 |
| 5 x 3 | 0.125 | 6.46 |
| 0.188 | 9.45 | |
| 0.250 | 12.21 | |
| 0.313 | 14.82 | |
| 0.375 | 17.27 | |
| 6 x 2 | 0.125 | 6.46 |
| 0.150 | 7.66 | |
| 0.188 | 9.42 | |
| 0.250 | 12.21 | |
| 0.313 | 14.82 | |
| 0.375 | 17.26 | |
| 6 x 3 | 0.125 | 7.31 |
| 0.188 | 10.70 | |
| 0.250 | 13.91 | |
| 0.313 | 16.95 | |
| 0.375 | 19.82 | |
| 6 x 4 | 0.188 | 12.00 |
| 0.250 | 15.62 | |
| 0.313 | 19.08 | |
| 0.375 | 22.37 | |
| 0.500 | 28.43 | |
| 7 x 4 | 0.188 | 13.25 |
| 0.250 | 17.31 | |
| 0.313 | 21.20 | |
| 0.375 | 24.92 |
| External Size in Inches | Wall Thickness in Inches | Weight Per Foot |
|---|---|---|
| 7 x 5 | 0.188 | 14.52 |
| 0.250 | 19.01 | |
| 0.313 | 23.33 | |
| 0.375 | 27.47 | |
| 0.500 | 35.22 | |
| 8 x 2 | 0.188 | 12.00 |
| 0.250 | 15.62 | |
| 8 x 3 | 0.188 | 13.28 |
| 0.250 | 17.32 | |
| 0.375 | 24.93 | |
| 8 x 4 | 0.188 | 14.56 |
| 0.250 | 19.02 | |
| 0.313 | 23.33 | |
| 0.375 | 27.48 | |
| 0.500 | 35.22 | |
| 9 x 7 | 0.250 | 25.83 |
| 0.375 | 37.69 | |
| 10 x 4 | 0.375 | 35.58 |
| 0.188 | 17.08 | |
| 0.250 | 22.42 | |
| 0.313 | 27.58 | |
| 0.375 | 32.57 | |
| 0.500 | 42.03 | |
| 10 x 6 | 0.188 | 19.63 |
| 0.250 | 25.82 | |
| 0.313 | 31.84 | |
| 0.375 | 37.68 | |
| 0.500 | 48.83 | |
| 10 x 8 | 0.250 | 29.22 |
| 0.313 | 36.09 | |
| 0.375 | 42.78 | |
| 0.500 | 55.64 | |
| 12 x 4 | 0.250 | 25.82 |
| 0.313 | 31.84 | |
| 0.375 | 37.68 | |
| 0.500 | 48.83 | |
| 12 x 6 | 0.250 | 29.22 |
| 0.313 | 36.09 | |
| 0.375 | 42.78 | |
| 0.500 | 55.64 | |
| 12 x 8 | 0.250 | 32.63 |
| 0.313 | 40.35 | |
| 0.375 | 47.89 | |
| 0.500 | 62.45 | |
| 16 x 8 | 0.375 | 58.10 |
Application of Rectangular Steel HSS Tube
● Buildings
● Bridges
● Towers
● Sign supports
● Drilling platforms
● And other critical infrastructure.

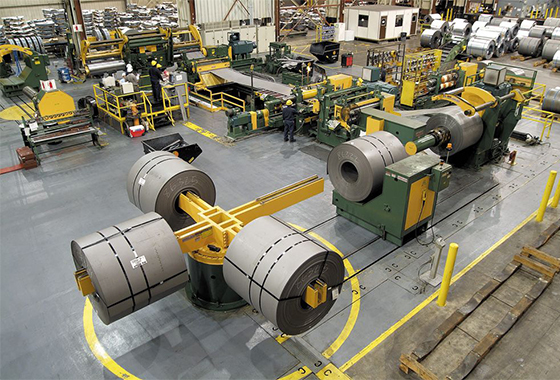

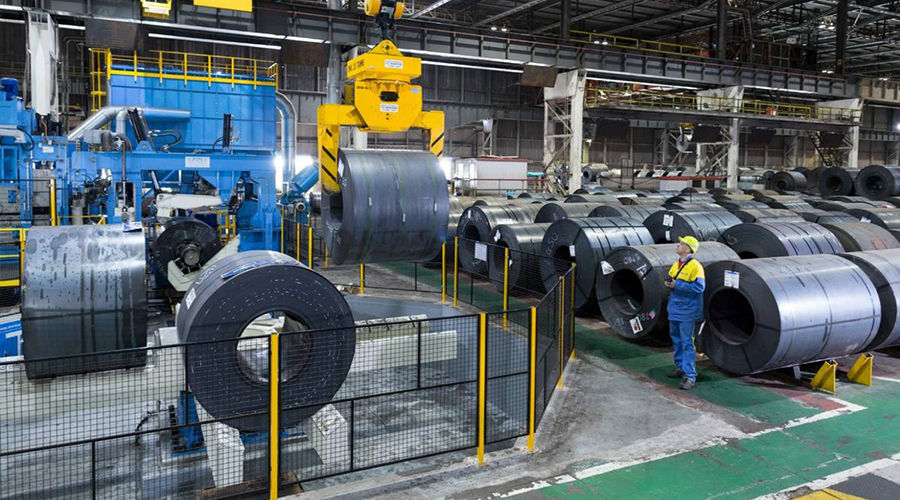

The company has rich experience and resources in overseas trade, and its products are exported to Europe, America, Asia and other countries and regions. The annual export volume exceeds US$50 million, accounting for more than 50% of the company's total sales.
